Banded classic v-belts inquiry

Banded classic v-belts inquiry

Zahtev za ponudu:

StarkLine® classic v-belts are produced as cogged belt for the better action on pulley. Range of classical banded v-belts meets all relevant international standards: DIN 2- 215, BS3790, ISO4184.

Technical description:

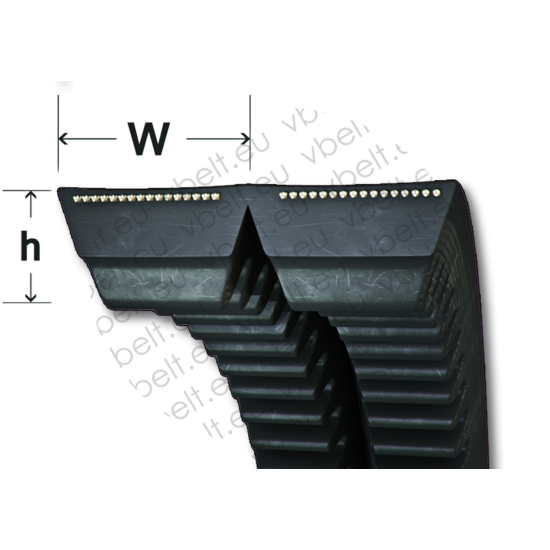

section	section size	length range	MDP**	ribs***	La	Lp*
HZX	10x8 mm	1300-40000 mm	50 mm	14	Li+50	Li+22
HAX	13x10 mm	1300-40000 mm	70 mm	11	Li+63	Li+30
HBX	17x13 mm	1500-40000 mm	110 mm	9	Li+82	Li+40
HCX	22x17 mm	1500-40000 mm	200 mm	7	Li+102	Li+58
HDX	32x23 mm	1500-40000 mm	355 mm	5	Li+144	Li+75

* Lp = Ld = Lw; **MPD = Minimum Pulley Diameter; *** Maximum Number of Channels
