US standard v-belt inquiry

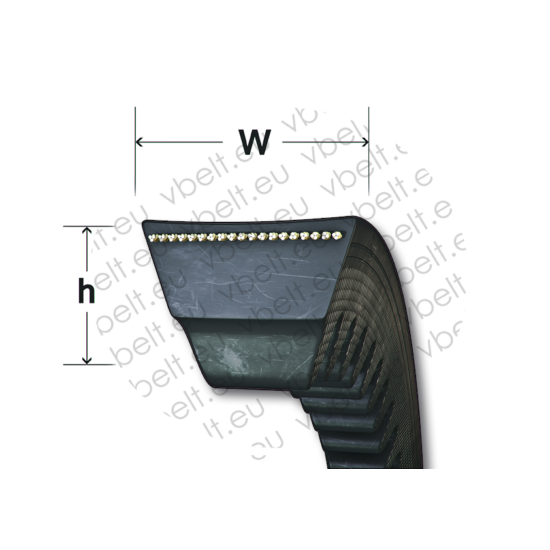

US standard StarkLine® v-belts are produced as cogged belt for the better action on pulley. This kind of v-belts have the same high thickness as the narrow section v-belts for the better grip on the pulleys. StarkLine® belts meet all relevant international standards: BS3790, USA standard RMA/MPTA.

Technical description:

section section size length range MDP** La Lp*
3VX 9,7x8 mm 700-40000 mm 56 mm Li+50 Li+38
5VX 16,3x14 mm 700-40000 mm 112 mm Li+82 Li+60
8VX 25x18 mm 1200-40000 mm 315 mm Li+120 Li+87

* Lp = Ld = Lw; **MPD = Minimum Pulley Diameter

If you would like to order StarkLine® v-belts with unique length please fill the inquiry form below.

Inquiry form
