Banded narrow v-belts inquiry

StarkLine® narrow section v-belts are produced as cogged belt for the better action on pulley. This kind of v-belts have the same high thicknes as the narrow section v-belts for the better grip on ther pulleys. StarkLine® belts meet all relevant international standards: DIN 7753, ISO4184.

Technical description:

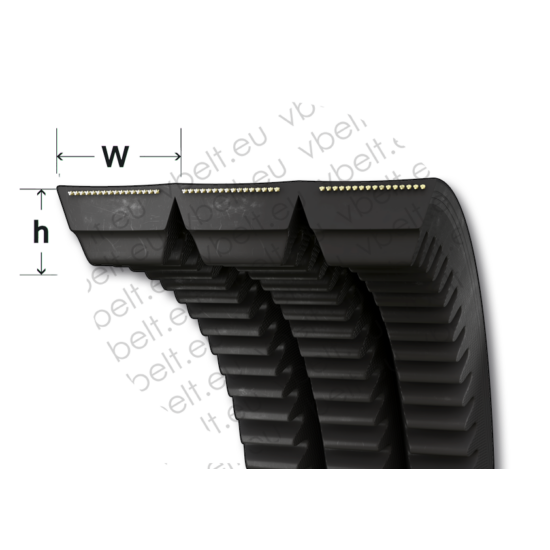

section section size length range MDP** ribs*** La Lp*
HXPZ 9,7X11 mm 1300-40000 mm 80 mm 14 Li+69 Li+38
HXPA 12,7X13 mm 1300-40000 mm 120 mm 11 Li+81 Li+45
HXPB 16,3X16 mm 1500-40000 mm 180 mm 9 Li+100 Li+60
HXPC 22X21 mm 1500-40000 mm 250 mm 7 Li+145 Li+83

* Lp = Ld = Lw; **MPD = Minimum Pulley Diameter; *** Maximum Number of Channels
